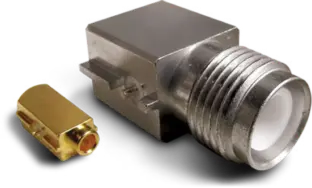

Aliner SMA connectors are precision connectors for microwave application up to 18 GHz and higher. The high mechanical strength, high durability and low VSWR indicate the characters. Together with semi-rigid cable, hi- grade lines can be installed. SMA receptacles (launchers) are used to provide transition to coax from stripline or microstrip on PCB. Aliner SMA connectors are precision connectors for microwave application up to 18 GHz and higher. The high mechanical strength, high durability and low VSWR indicate the characters. Together with semi-rigid cable, hi- grade lines can be installed. SMA receptacles (launchers) are used to provide transition to coax from stripline or microstrip on PCB.

Products

Material / Finish :

# Material Finish
Connector body Brass per (QQ-B-626 or JIS-C3604B) Nickel or Gold plating
Stainless steel per (QQ-S-764 class 303) Passivated
Center contact male Brass per (QQ-B-626 or JIS-C3604B) Gold plating
Center contact male Beryllium copper per (QQ-C-530 or JIS-C1730) Gold plating
Insulator PTFE None
Crimp ferrule Annealed copper Same as body
Gasket Silicone rubber None

Electrical :

Nominal impedance 50Ω
Frequency up to 12.4 GHz flexible cable, 18 GHz semi-rigid cable
VSWR 1.15 + 0.02xf GHz for straight connector typical
1.25 + 0.03xf GHz for right angle connector typical
Working voltage 335 Volts rms max.
Dielectric withstanding voltage 500 Volts rms min.
Insulation resistance 5000 MΩ min.
Contact resistance center conductor 3.0 mΩ
outer conductor 2.0 mΩ

Mechanical & Environmental :

Mating .190-36 UNS thread coupling
Cable retention 3 kgf typical
Coupling nut retntion 10 kgf
Temperature range -55℃ to +155℃
Corrosion Per MIL-STD-202 Method 101 Test Condition B
